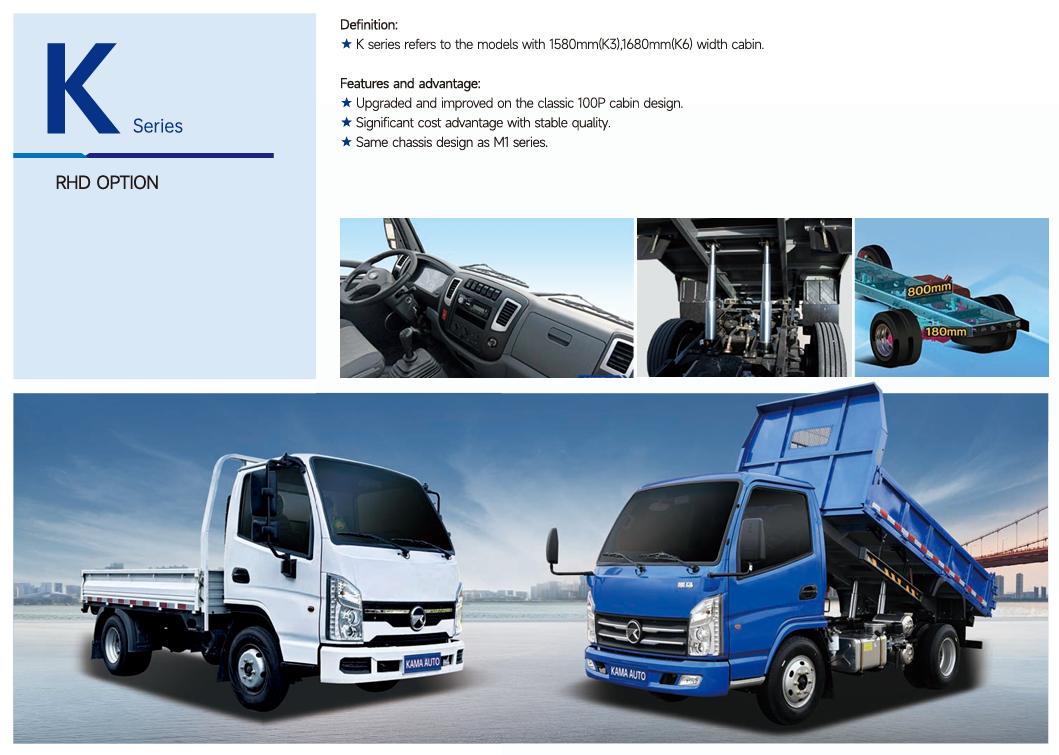

K series — 1580mm–1680mm cabin width light trucks. Upgraded classic 100P cab design with significant cost advantage. Same chassis design as M1 series.
Get pricing & availability
Get a Quote: pricing and delivery offer.|Ask a Question: technical details and product guidance.
| A/C | Standard |
| Media | MP5 |
| GVW (kg) | 4280 – 4760 |
| Variants | GK5E8, K66A, K67B, K68B, K98 |
| Fuel Type | Diesel / Gasoline |
| Gearshift | 5+1 speed, manual |
| Tyre Model | 6.00R16LT / 6.50R16LT / 7.50R16LT |
| Cabin Width | 1580mm (K5) / 1680mm (K6) |
| Battery Volt | 12V / 24V |
| Brake System | Hydraulic brake |
| Central Lock | Standard |
| Power Window | Standard |
| Engine Models | D1YTCE1(YUNNEI), JE4932L034(ISUZU), JE4932L034(ISUZU), YN4100QT(YUNNEI), YC4FA20-33(YUCHAI) |
| Parking Brake | Central drum / Spring energy air cut |
| Power Steering | Standard |
| Curb Weight (kg) | 2260 – 2520 |
| Max Speed (km/h) | 90 |
| Emission Standard | Euro I / Euro II / Euro III / Euro V |
| Suggested Payload | 2T – 3T |
| Cargo Box Size (mm) | 3980×1800×350 – 5420×1800×520 |
| Max Torque (N.m/rpm) | 250/600-2600 – 545/800-2200 |
| Engine Power (kW/rpm) | 57/5600 – 88/5200 |
| Wheelbase Options (mm) | 2600 / 2800 |
| Engine Displacement (cc) | 1900 / 2271 / 2982 |

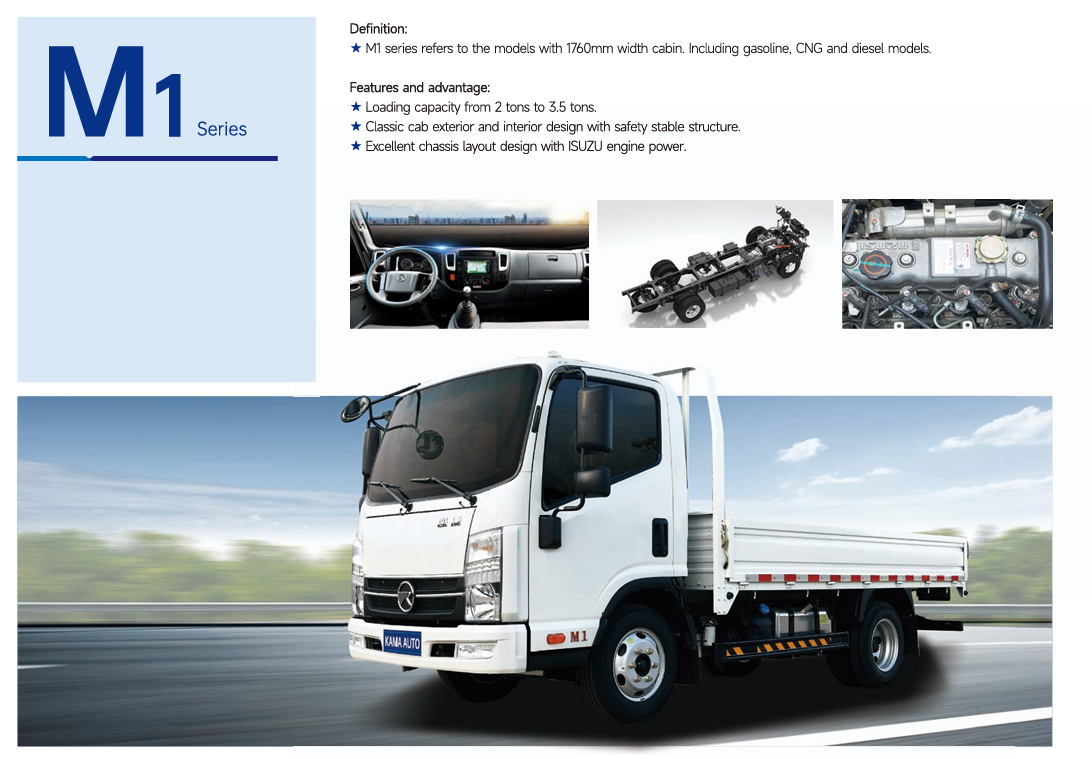

M1 series — 1760mm width cabin light trucks. Loading capacity from 2 to 3.5 tons. Powered by ISUZU engine with classic, safety-stable cab design.

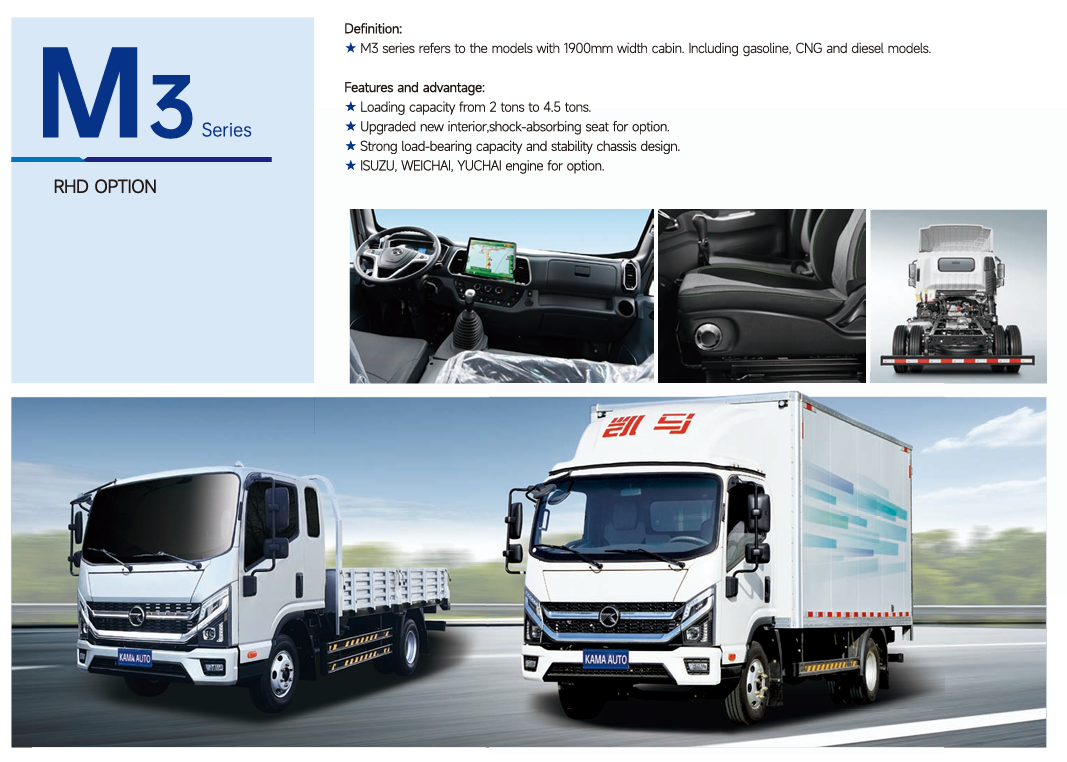

M3 series — 1900mm width cabin light trucks. Loading capacity from 2 to 4.5 tons. ISUZU, WEICHAI and YUCHAI engine options with heavy load stability.

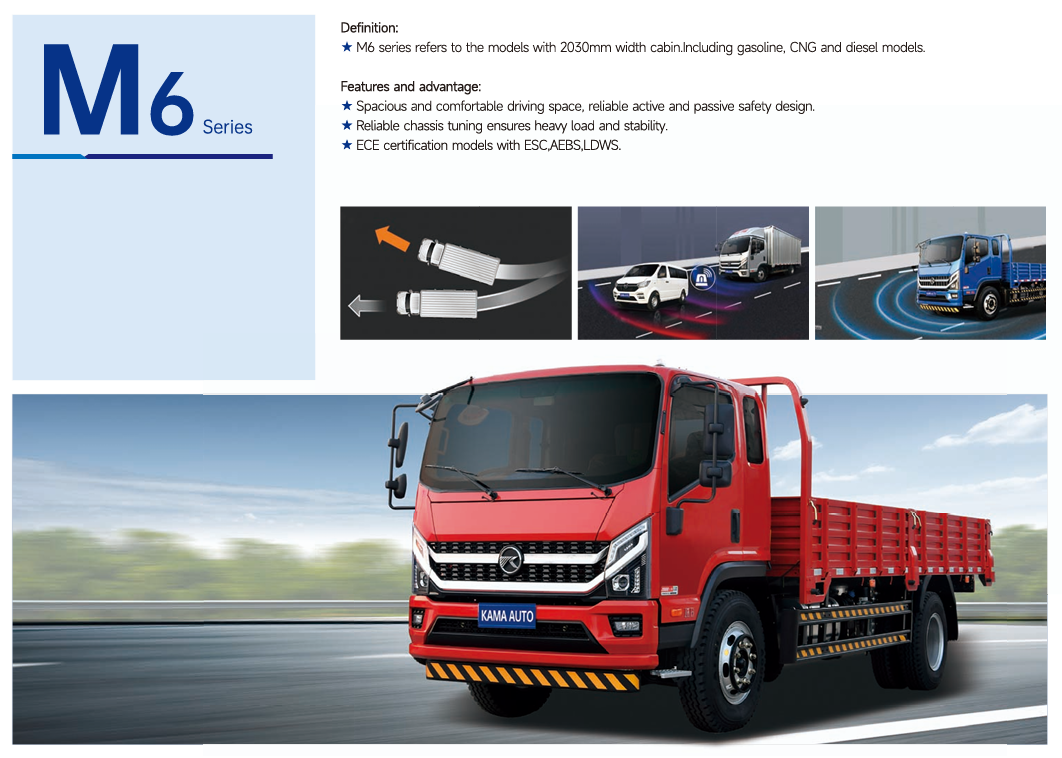

M6 series — 2030mm width heavy light trucks. Payload from 5.5T to 10T. Features YUCHAI and ISUZU engines with ECE certification and ESC, ABS, LDWS safety.
