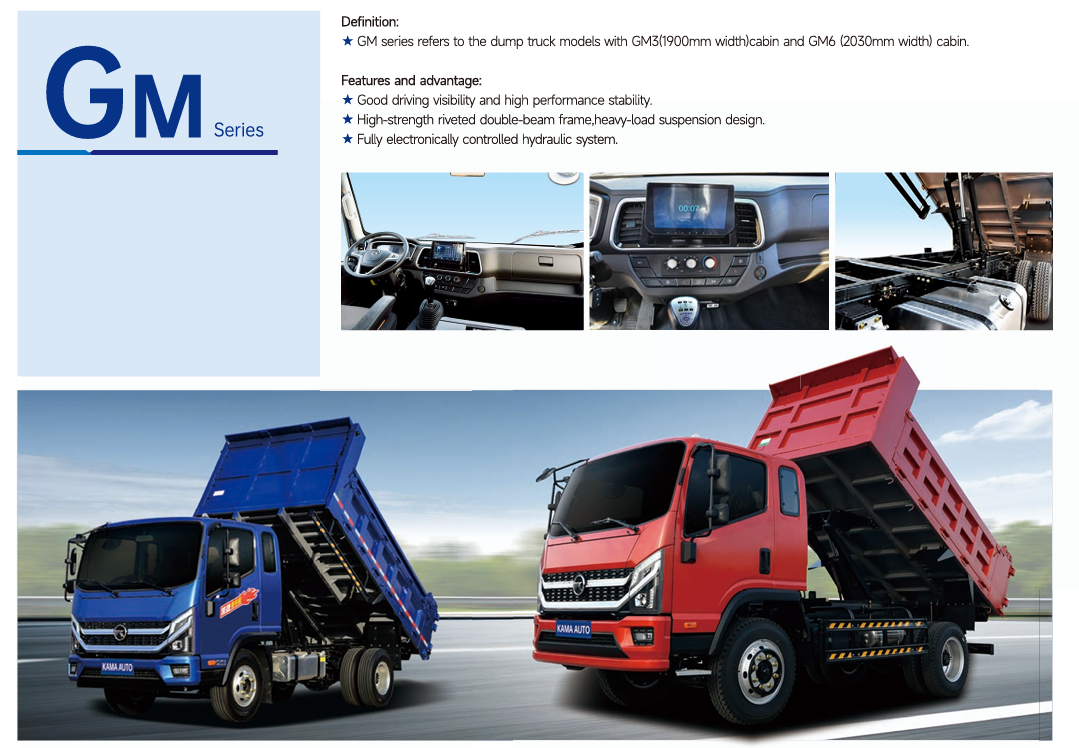

GM3 series — 1900mm cabin width dump truck with payload capacity of 6.5T. Electronically controlled hydraulic dumping system with heavy-load suspension design.
Get pricing & availability
Get a Quote: pricing and delivery offer.|Ask a Question: technical details and product guidance.
| A/C | Standard |
| ABS | Standard |
| Media | MP5 |
| GVW (kg) | 11700 |
| Variants | GM368, GM370 |
| Fuel Type | Diesel |
| Gearshift | 8+2 speed, manual |
| Tyre Model | 8.25R16 |
| Cabin Width | 1900mm (one and half cabin) |
| Final Ratio | 5.286 |
| Battery Volt | 24V |
| Brake System | Air brake |
| Central Lock | Standard |
| Power Window | Standard |
| Engine Models | YC4FA20-55(YUCHAI), YC4FA20-40(YUCHAI) |
| Parking Brake | Spring energy air cut brake |
| QTY of Wheels | 6+1 |
| Power Steering | Standard |
| Wheelbase (mm) | 3260 |
| Curb Weight (kg) | 4700 |
| Max Speed (km/h) | 100 |
| Emission Standard | Euro II / Euro IV |
| Suggested Payload | 6.5T |
| Cargo Box Size (mm) | 3650–3680 × 2100 × 600 |
| Max Torque (N.m/rpm) | 345/1600-2200 — 380/1400 |
| Engine Power (kW/rpm) | 88/5200 — 88/3800 |
| Overall Dimensions (mm) | 5880–5890 × 2230 × 2600 |
| Engine Displacement (cc) | 2982 |
